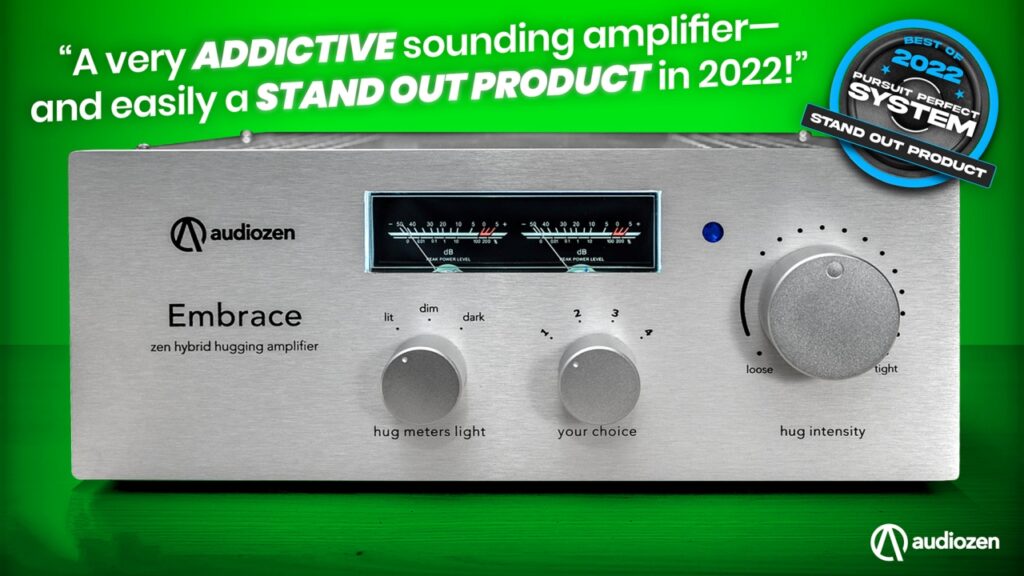

Audiozen Embrace - Hybrid hugging amplifier with separate power supply unit

Embrace – Hybrid Hugging Amplifier

Do Embrace a favor, don't call it integrated, because it hugs the NOS tube preamplifier, the new SI-C Mosfets power stage and the oversized separate power supply unit

the concept

We had to do it: the evolutionary process is not only linked to living beings but it is also related to the realizations of man. The creations of the mind and heart mature, evolve to the point of changing their skin, turning into something different, probably better, certainly something that makes the evolution explicit.

We wanted to do it: Alchemy, Audiozen’s first integrated amplifier, in about five years made our approach to music known in Europe and overseas, it was highly appreciated by the public and the specialized press, and had already been internally updated to improve their driving and control capabilities.

We can do it: the vision of a new approach is the fusion of evolution and experience, where the designer and his team can lead a path free from constraints towards a higher sonic and aesthetic goal.

And in this era in which contact between human beings is almost forbidden, we have poured so much passion into this project that this time we give you the hug: the new Embrace amplifier is not an integrated, because it does not integrate but it embraces a tube preamplifier and the new Si-C Mosfets power stage.

It is not just a different way of describing, it is the necessary clarification for a creation that is itself an embrace to music: a hug cannot be fake and, at the same time, a hug has no barriers.

Audiozen Embrace - Hybrid hugging amplifier with separate power supply unit

FEATURES AND CHARACTERISTICS

Two NOS tubes preamplify the audio signal that passes through fine ClarityCap ESA series polypropylene capacitors to reach the redesigned power stage equipped with the amazing second generation Si-C Mosfets (SIC FET 2) that enriches with its transparency and speed the natural and enveloping tone of the tubes.

All of this wouldn’t be in perfect harmony if it weren’t powered flawlessly: this hybrid configuration, this embrace of technologies is powered by a separate power stage.
Just physically separated, because it is firmly connected to the main unit via a cable of adequate section equipped with an oversized connector stable up to 30 Amps.

The separate power supply section houses three toroidal transformers: the 50 VA pair is dedicated to the preamplifier section, the massive 300 VA unit is connected to the power stage. The power switch (“hug power”) is located on the front panel: in the stand-by position the Embrace’ preamplifier stage only is switched on, to heat the heart of the tubes before supplying energy to the power stage when the hug power switch will be turned on.

Embrace is a creation where the position and the function of each component has been studied with meticulous precision to obtain electrical characteristics well above the standards.

In the Embrace the volume becomes the control of the hug intensity, the vu-meters are now the hug meters and the hug meters light knob will be used to switch on, attenuate or switch off the backlighting.

If a hug has no barriers, Embrace lets itself be looked at, it has nothing to hide, it wants to reassure the viewer: a transparent perspex cover constantly bares his heart.

8 mm thick solid wood sides, solid machined aluminum knobs, 10 mm thick aluminum front panel, sturdy rear binding posts and first class RCA connectors, remote control for volume management: all of that complete an Audiozen creation conceived without compromise.

Get hugged.

si-c mosfet

Audiozen Embrace power stage equipped with new Silicon Carbide (Si-C) Mosfets

Silicon carbide (Si-C), is a semiconductor containing silicon and carbon. Si-C Mosfet is synonymous of reliability and power, and it can get its best qualities when implemented in a well designed power stage, with unrivalled speed, transparency and control.

Read more

NOS tubes

Audiozen Embrace - Hybrid hugging amplifier with separate power supply unit

Audiozen chooses fine tubes manufactured by the best brands of that time through trusted suppliers worldwide.

Read more

separate psu

Audiozen Embrace - Separate power supply unit (the other half)

An audio circuit (preamplifier, power stage, phono preamplifier, etc.) can be designed carefully and with great skillfulness but without a well projected power supply all is vain.

Read more

I received your work of art (Audiozen Embrace hugging amplifier) I just set it up and my god it was such a wonderful expression of music in my life for once I felt truly embraced. Congratulation on producing such a jewel!
Rodriguez
Spain
Sono arcicontento dell'Embrace. Un deciso passo avanti a livello estetico e a livello sonico rispetto all'Alchemy. Ho riscontrato più dolcezza ed una dinamica maggiore. Sembra che l'energia da spendere non abbia limiti! Molto, molto, molto soddisfatto. Audiozen ha fatto pienamente centro!!!
Federico
Italia
My new Embrace sounds amazing! Your workmanship is 1st class and I commend you and your team.
Frank
USA

Audiozen Embrace hugging amplifier reviewed by Terry Ellis – Pursuit Perfect System

Mark Cargill at Elite Audio – UK Audiozen Dealer – unboxes the new Audiozen Embrace

Audiozen Embrace

hybrid hugging amplifier
Technical specifications
  • Power output @ 8Ω - 4Ω: 100 - 175 W per channel in class AB
  • Frequency response: 20 - 50000 Hz +/- 3 dB
  • Input impedance: 100 KΩ
  • Signal-to-noise ratio: 101 dB
  • NOS tubes: 2 x ECC82 (or equivalent)
  • Line inputs: 4 x RCA
  • Monitor out: 1 x RCA
  • Remote control: included
  • Available finishes: silver & black
  • Main unit dimensions and weight: 348x138x295mm (WxHxD) – 5,4 Kg.
  • PSU dimensions and weight: 348x98x245mm (WxHxD) – 7 Kg.
